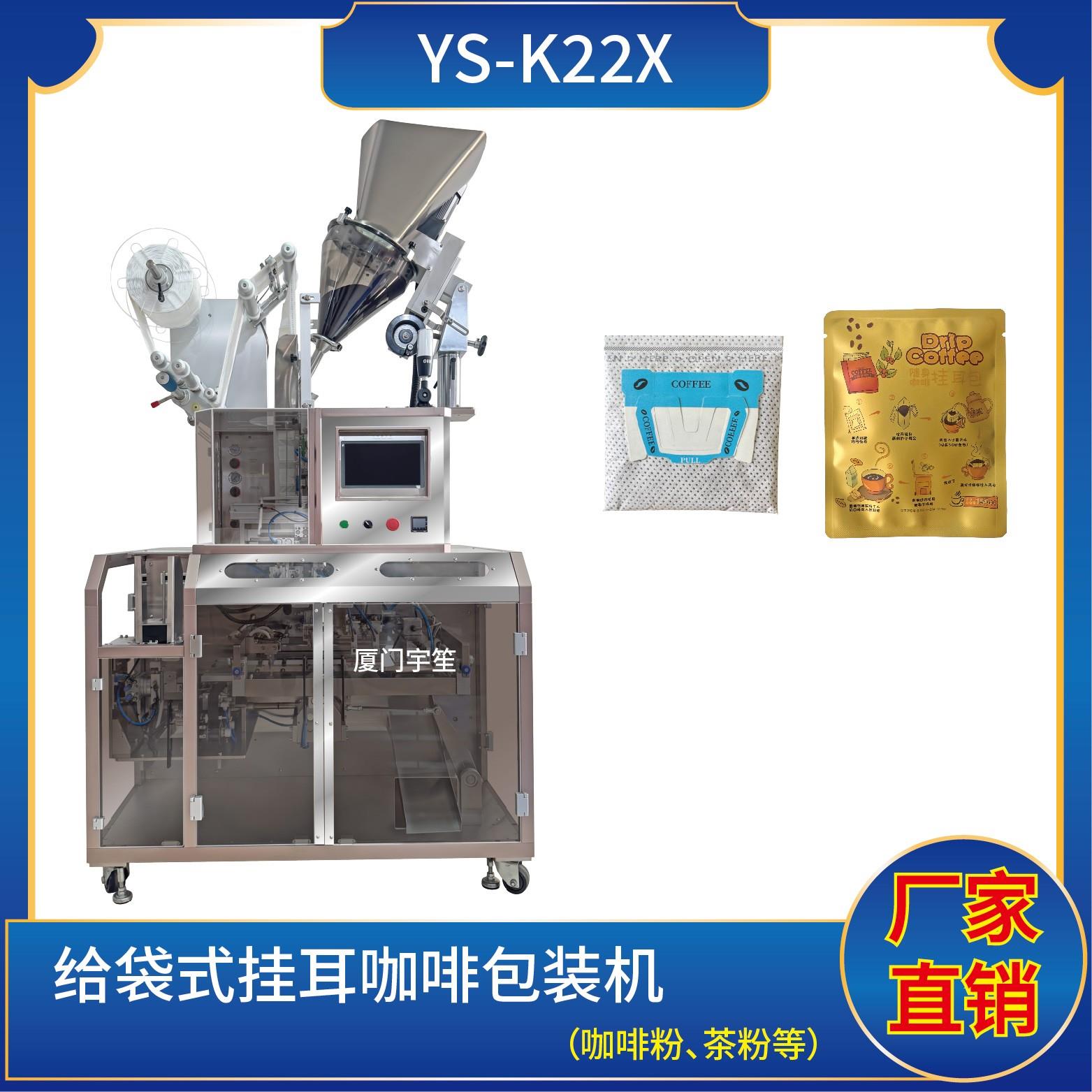

YS-K22X 給袋掛耳咖啡內外袋包裝機
YS-K22 Bag-type hanging ear coffee packing machine
YS-K22 給袋掛耳咖啡內外袋包裝機
特 點 Characteristic
1、適用于茶粉、咖啡粉物料的內外袋一次性包裝。
The machine is suitable for the dual bag packing of powder-like materials, such as tea powder and coffee powder.
2、內袋采用特定的掛耳式濾網、三邊封口、直接掛在杯子邊緣，咖啡沖泡更方便。封口采用先進的超聲波封，封口效果好。外袋為給袋式，袋型美觀。
The inner bag adopts the specific hanging ear type filter, three side sealing, it can directly hanging on the edge of the cup, coffee brewing is more convenient. Sealing adopts advanced ultrasonic sealing, sealing effect is good. The outer bag is the bag type, and the bag shape is beautiful.
3、本機具有自動完成制袋、計量、充填、封合、分切、計數、打印批號等功能。
The machine integrates automatic function, such as bag making, measuring, filling,sealing cutting, counting, batch number printing and other functions.

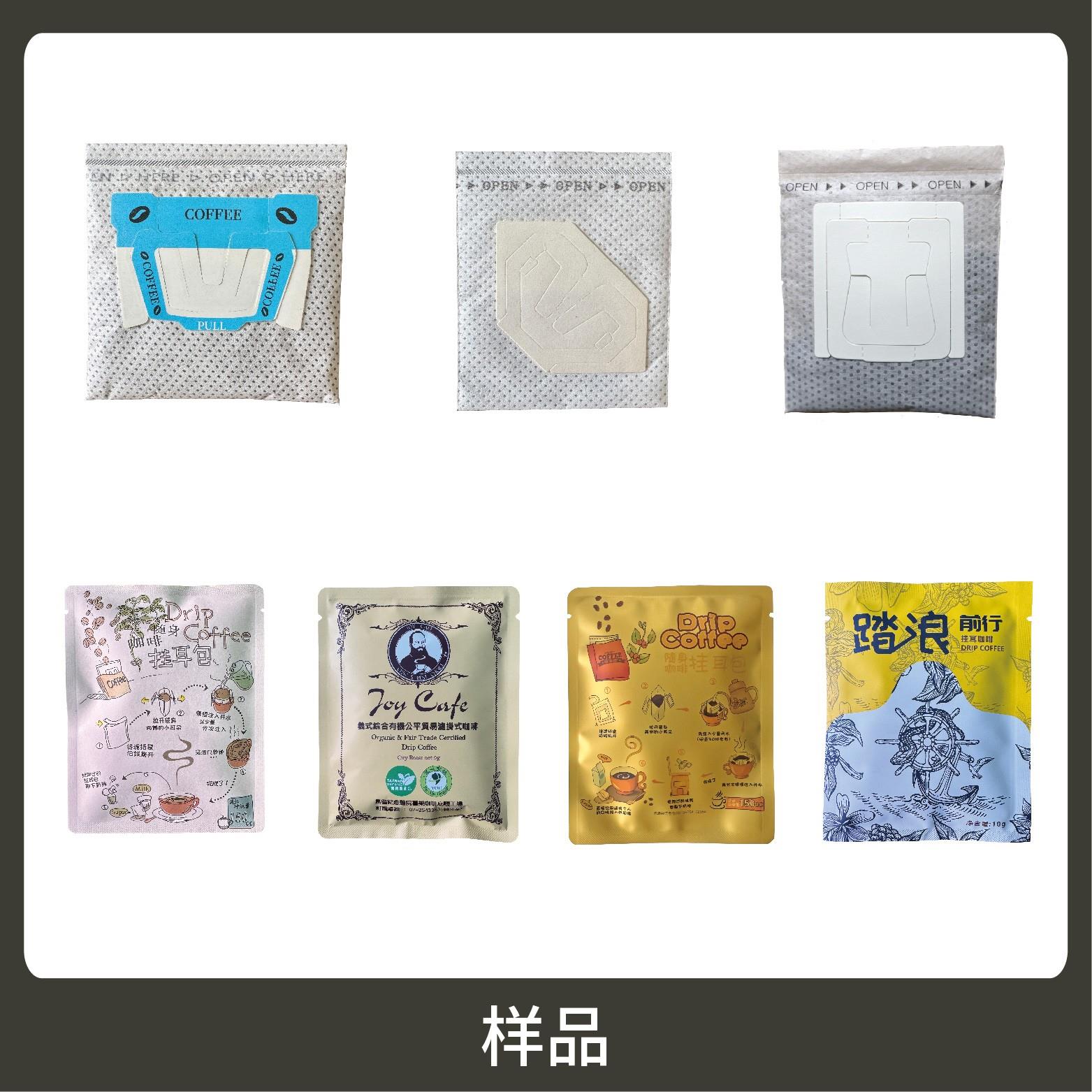

4、包裝材料：尼龍、玉米纖維、掛耳咖啡膜、復合膜等（預制袋）。
Packaging materials: nylon, corn fiber, hanging ear coffee film, composite film, etc. (preformed bag).
封口方式 Sealing Type
預制袋
技術參數
Technical Parameters
計量范圍：1 - 15 g
Measuring Scope
內袋尺寸：長 ( L ) ：70-80 mm 寬 ( W ) ：90/95 mm
Inner bag size
預制袋尺寸：長 ( L ) ：125-130 mm 寬 ( W ) ：100-120 mm
Prefab bag
包裝速度：20-35 bags/min
Packing Speed
外型尺寸：1310*1023*2230 mm
Dimension ( L * W * H )
整機重量：440 kg
Weight
總 功 率：AC220V / 50Hz / 4.6kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、適用于茶粉、咖啡粉物料的內外袋一次性包裝。
The machine is suitable for the dual bag packing of powder-like materials, such as tea powder and coffee powder.
2、內袋采用特定的掛耳式濾網、三邊封口、直接掛在杯子邊緣，咖啡沖泡更方便。封口采用先進的超聲波封，封口效果好。外袋為給袋式，袋型美觀。
The inner bag adopts the specific hanging ear type filter, three side sealing, it can directly hanging on the edge of the cup, coffee brewing is more convenient. Sealing adopts advanced ultrasonic sealing, sealing effect is good. The outer bag is the bag type, and the bag shape is beautiful.
3、本機具有自動完成制袋、計量、充填、封合、分切、計數、打印批號等功能。
The machine integrates automatic function, such as bag making, measuring, filling,sealing cutting, counting, batch number printing and other functions.
4、包裝材料：尼龍、玉米纖維、掛耳咖啡膜、復合膜等（預制袋）。
Packaging materials： nylon, corn fiber, hanging ear coffee film, composite film, etc. (preformed bag).
計量范圍：1 - 15 g
Measuring Scope
內袋尺寸：長 ( L ) ：70-80 mm 寬 ( W ) ：90/95 mm
Inner bag size
預制袋尺寸：長 ( L ) ：125-130 mm 寬 ( W ) ：100-120 mm
Prefab bag
包裝速度：20-35 bags/min
Packing Speed
外型尺寸：1310*1023*2230 mm
Dimension ( L * W * H )
整機重量：440 kg
Weight
總 功 率：AC220V / 50Hz / 4.6kw
Total Power
氣 源：≥0.6Mpa
Gas source
